15\" x 15\" Slide-Out Heat Presses

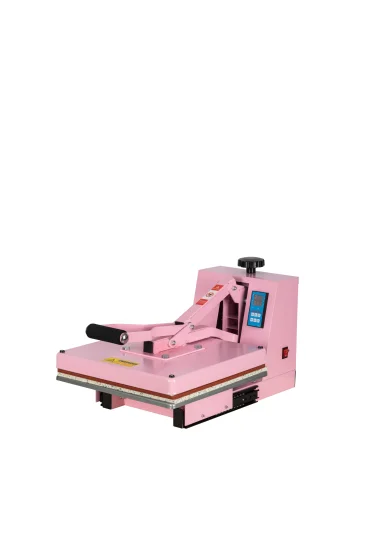

(image for) 15" x 15" Slide-Out Heat Presses

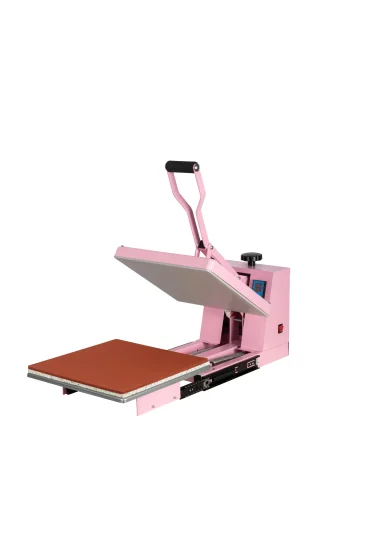

(image for) 15" x 15" Slide-Out Heat Presses

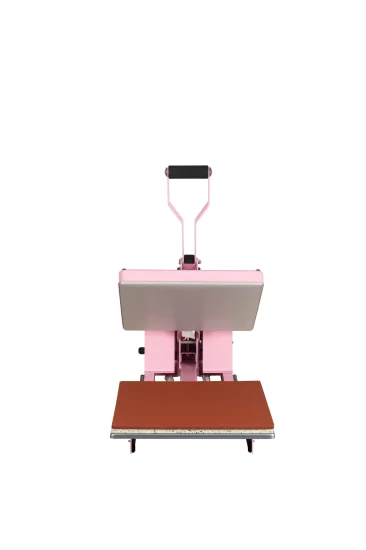

(image for) 15" x 15" Slide-Out Heat Presses

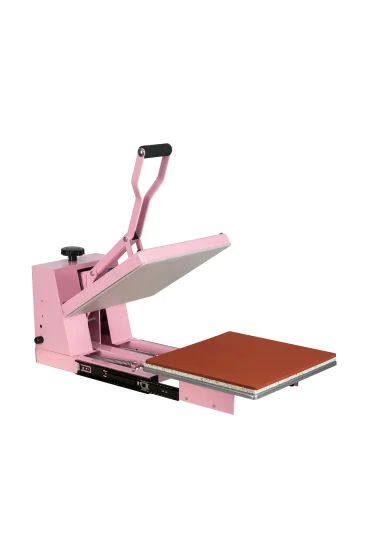

(image for) 15" x 15" Slide-Out Heat Presses
(image for) 15" x 15" Slide-Out Heat Presses
  • Model: 15x15 Manual Heat Press Machine
  • In Stock: 14

15" x 15" Slide-Out Heat Presses

$222.86  $215.68
Save: 3% off
Our 15x15 safety upgrade heat press machine features an slide-out lower platen, enhancing material placement and operational safety, perfect for bulky and delicate items. Swing Design's 15" x 15" Clamshell Slide Out Heat Press is designed to deliver even heat at the right temperature while keeping you away from the heat. Great for applying heat transfer vinyl and sublimation products to a wide variety of fabrics and materials. Works with t-shirts, tote bags, towels, rhinestones, canvas, thin wood, flat blanks and many other items. The heat press can toggle between Celsius and Fahrenheit to accommodate diverse material needs, making this machine versatile for global use.


Product Features

  • Voltage: 110 volt Power: 1400 watts, Heat Press Style Clampshell
  • With Slide-out Base
  • Temperature Range: 0-500
  • Electronic time and heat control
  • Silicon pad lightly glued down for easy replacement
  • Pressure adjustable
  • Pink Model: CH-38A-Z
  • Place of Origin:China
  • Main Color:Pink
  • Main Material:Aluminium

Technical features:

Dimensions & Weights Assembled Length (in.) :15.40
Assembled Width (in.):35.80
Assembled Height (in.):27.60
Weight (lbs):50.72
Voltage(V): 110/60HZ
Power(KW): 1.4
Temperature(℃): 0-299
Delaying time(S): 1-99
G.W.(LB): 55.13
Packing Size(in): 27.8X18.1X17.5
Accept Thickness: Max. 2.36'' Thick Items
Range of Application: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Heat Plate Size: 15'' x 15'' (38 x 38cm)
Pure Cotton Time: 15s-25s
Polyester Time: 40s
Chemical Fiber Time: 10s-40s
Pearl Board Time: 60s-100s
Metal Pendant Time: 60s
Mousepad Time: 50s
Vitrolite Time: 180s
Ceramics Time: 180s

Temperature Requirements of Different Materials

Pure cotton 356℉-428℉ (180℃-220℃)
Polyester 356℉ (180℃)
Chemical fiber 302℉-356℉ (150℃-180℃)
Pearl board 356℉ (180℃)
Metal pendant 356℉ (180℃)
Mousepad 374℉ (190℃)
Key ring pendant 356℉ (180℃)
Ceramics 356℉-428℉ (180℃-220℃)
