(image for) 16x24 Manual Heat Press Machine With Slide-out base

16x24 Manual Heat Press Machine With Slide-out base

Model: 16"X24" DIY Digital Clamshell T-shirt Heat Press Machine Sublimation Transfer
In Stock: 27

16x24 Manual Heat Press Machine With Slide-out base

$388.86

(0 Reviews) Add Your Review

16x24 Manual Heat Press Machine with Slide-Out Base, 2000W Clamshell Heat Press for T-Shirts, Sublimation, Vinyl, and More (Purple). The larger heating pad, 16 x 24 in / 40.6 x 61 cm, adopts sponge, reaching a service life of 20,000 hours. Deliver a quicker heating speed and a better transfer effect. Soft heating liner is applied for accommodating various kinds of materials. It can also reduce unpleasant smells during operation.

Description

16 x 24 inch Heat Press Machine Fast Heating & One Station & Efficient Transfer
This Industrial-quality clamshell heat press adopts the latest heating technology and two-layer insulation pads to improve the transfer performance. The stability has also been enhanced with a high precision temperature sensor and accurate time controller, widely used for home decorations, customized gifts, and holiday celebrations.

1. 16 x 24 in Large Platen
2. Digital Control Board
3. Teflon Insulation Coating
4. Adjustable Pressure Knob
5. Easy to Use

Upgraded Teflon Coating

This Teflon-coating heat press is capable of decreasing the possibility of scorching during the transfers. Besides, it's easy to clean and can make printing more steady. A ground wire is also equipped for secure operation.
Tightly Wrapped
Adjustable pressure knobs, fitted-to-palm handle, and two soft silicone & sponge heating pads provide a full range of heating effects. Multiple designs help the mats tightly wrap the materials. Especially suitable for the transfer of flat items.

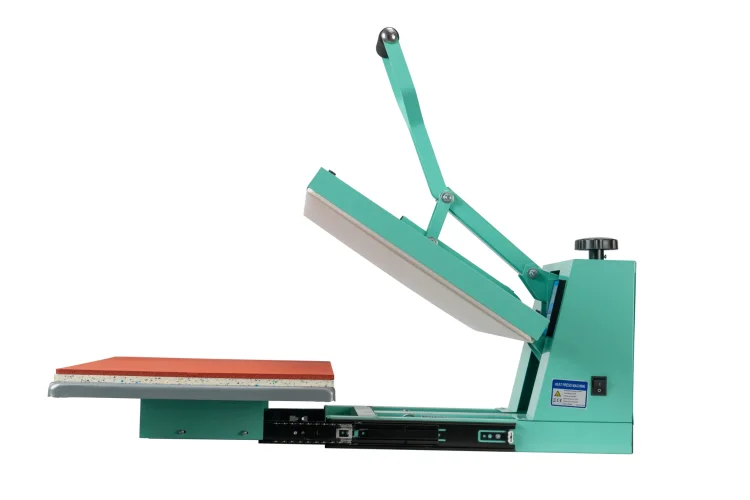

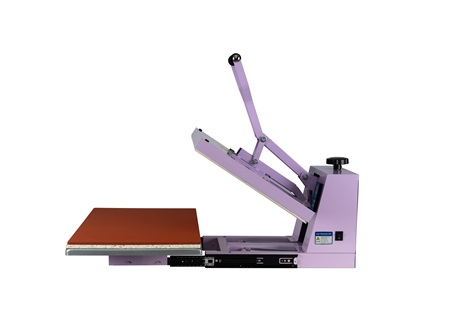

Slide- out Lower Platen
The slide- out lower platen can avoid scalding, easy to pull and push

Specifications

Dimensions & Weights
Assembled Length (in.):36.00
Assembled Width (in.) :32.00
Assembled Height (in.) :28.00
Weight (lbs) :72.77
Main Color:Antique Green
Main Material:Aluminium
Voltage: 110 volt Power: 2000 watts, Heat Press Style Clampshell
With Slide-out Base
Temperature Range: 0-500
Electronic time and heat control
Silicon pad lightly glued down for easy replacement
Pressure adjustable
Pink Model: CH-64P

Technical features:

Voltage(V):	110/60HZ
Power(KW):	2
Temperature(℃):	0-299
Delaying time(S):	1-99
G.W.(LB):	77.18
Packing Size(inch):	31.5x28.0x17.5
Accept Thickness:	Max. 2.36'' Thick Items
Range of Application:	Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Heat Plate Size:	16'' x 24'' (40 x 60cm)

Pure Cotton Time:	15s-25s
Polyester Time:	40s
Chemical Fiber Time:	10s-40s
Pearl Board Time:	60s-100s
Metal Pendant Time:	60s
Mousepad Time:	50s
Vitrolite Time:	180s
Ceramics Time:	180s

Temperature Requirements of Different Materials

Pure cotton	356℉-428℉ (180℃-220℃)
Polyester	356℉ (180℃)
Chemical fiber	302℉-356℉ (150℃-180℃)
Pearl board	356℉ (180℃)
Metal pendant	356℉ (180℃)
Mousepad	374℉ (190℃)
Key ring pendant	356℉ (180℃)
Ceramics	356℉-428℉ (180℃-220℃)
