Product Features

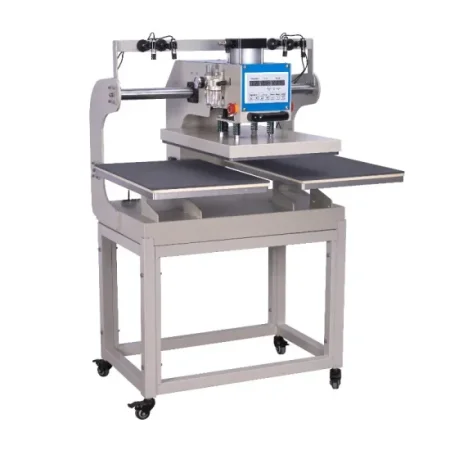

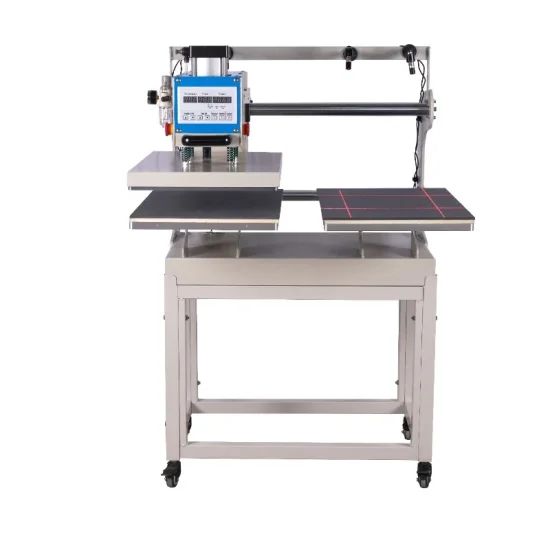

16x24 Dual Heat Press Machine, Pneumatic Dual Platen Heat Press with Portability Stand Up-Sliding Function Large Format Sublimation Transfer Machine for Professional Printing
- Pneumatic heat press transfer machine makes machine more convenient for printing;
- T-shirt printing machine is more accurate for small items printing;
- Heat press machine powered by an air compressor ( not included);
- Heat press machine lower aluminium plate with seperate stand makes it more convenient to set in finished clothes
- Heat press machine with base frame for much stable printing and easy movement with the brake caster
Description
16' x 24' Up-sliding Heat Press Machine Pneumatic Heat Press Machine
- Heat press machine is full digital integrated display control;
- High accuracy of signal indication when press process is completed;
- Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;
- Heat press machine pressure can be adjusted up to 0.8Mpa, It adopts connected track which is stable and convenient for sliding, with high efficiency;
- Special high temperature cloth for hot stamping machine covered
- Lower plate covered with silicon mat and sponge to heat even heating pressure
- Heat press machine is automation print once backside inductive screw touched
- Left and right side bearings parallelly move the heat press machine
- General pressure for 0.4Mpa-0.6Mpa heat printing
Double Station Heat Press Machine
- Pneumatic heat press transfer machine makes machine more convenient for printing;
- T-shirt printing machine is more accurate for small items printing;
- Heat press machine powered by an air compressor ( not included);
- Heat press machine lower aluminium plate with seperate stand makes it more convenient to set in finished clothes
- Heat press machine with base frame for much stable printing and easy movement with the brake caster
-

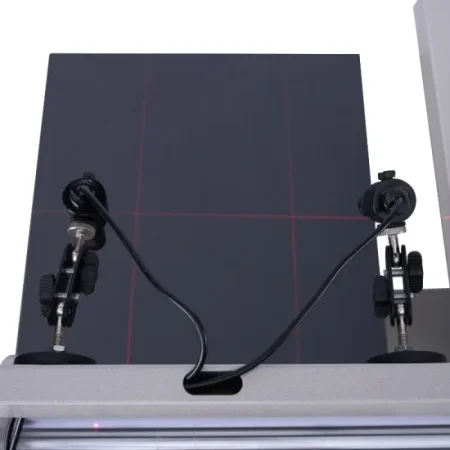

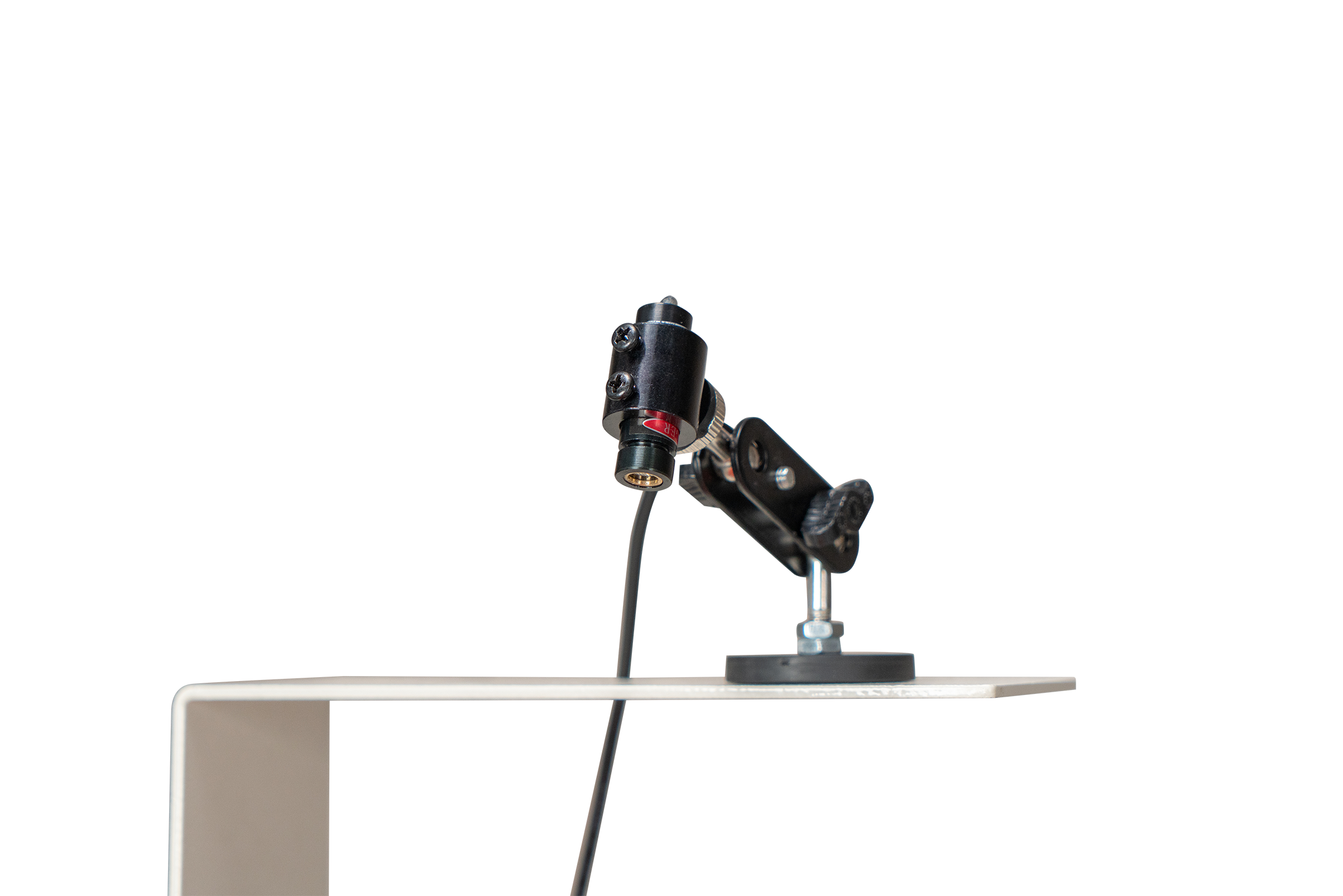

Laser positioning
This Dual Platen heat press stands out with its infrared positioning, a sophisticated feature rarely found in compact models.
This system ensures precise placement of transfers.
-

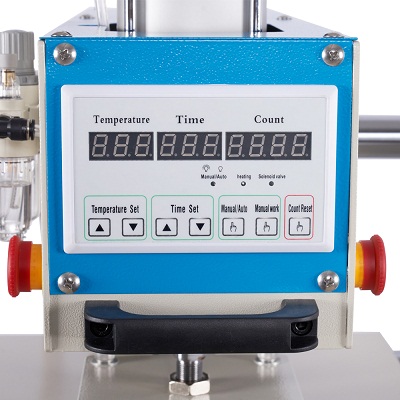

Big LCD Display Controlled, with Temperature, Time and Count Set
Can save the labor and time cost with automatic counting.
-
Emergency Stop Button for Urgent Case Stop If Needed

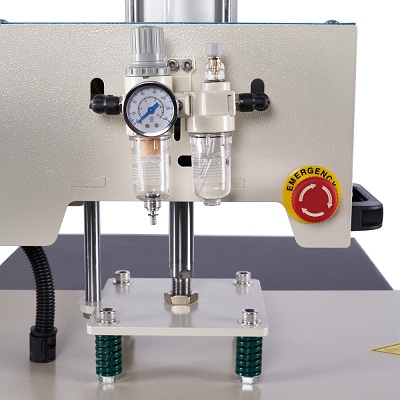

Pressure adjusting knob for easy adjustment of different pressure
Right bottle for lubricate the air cylinder.
-

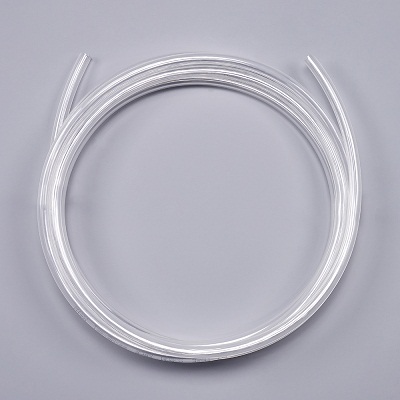

Hose for the Air Compressor Included
Hose for the Air Compressor Included!
Specifications
16 x 24'' Hot Selling Heat Press Machines
| Voltage(V): |
110V/60HZ |
| Power(KW): |
1.6 |
| Temperature(℃): |
0-299 |
| Delaying Time(S): |
1-999 |
| G.W.(LB): |
306.5 |
| Package Size(''): |
42.5'' x 33.9'' x 32.3'' |
| Accept Thickness: |
Max. 2.36'' Thick Items |
| Range of Application: |
Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Pure Cotton Time: |
15s-25s |
| Polyester Time: |
40s |
| Chemical Fiber Time: |
10s-40s |
| Pearl Board Time: |
60s-100s |
| Metal Pendant Time: |
60s |
| Mousepad Time: |
50s |
| Vitrolite Time: |
180s |
| Key Ring Pendant Time: |
100s |
| Ceramics Time: |
180s |
| Heat Plate Size: |
16'' x 24'' (40 x 60cm) |
| Material |
Temperature |
| Pure cotton |
356℉-428℉ (180℃-220℃) |
| Polyester |
356℉ (180℃) |
| Chemical fiber |
302℉-356℉ (150℃-180℃) |
| Pearl board |
356℉ (180℃) |
| Metal pendant |
356℉ (180℃) |
| Mousepad |
374℉ (190℃) |
| Vitrolite |
392℉ (200℃) |
| Ceramics |
356℉-428℉ (180℃-220℃) |
