Product Features
- Pneumatic heat press transfer machine makes machine more convenient for printing;
- T-shirt printing machine is more accurate for small items printing;
- Heat press machine powered by an air compressor ( not included);
- Heat press machine lower aluminium plate with seperate stand makes it more convenient to set in finished clothes
- Heat press machine with base frame for much stable printing and easy movement with the brake caster
- Place of Origin : China
- Main Color: White+Blue
- Main Material: Aluminium
Description
16 x 24'' Hot Selling Heat Press Machines
| Dimensions & Weights: |
Assembled Length (in.) :35.00
Assembled Width (in.):33.00
Assembled Height (in.):52.00
Weight (lbs):284.45 |
| Voltage(V): |
110V/60HZ |
| Power(KW): |
1.6 |
| Temperature(℃): |
0-299 |
| Delaying Time(S): |
1-999 |
| G.W.(LB): |
306.5 |
| Package Size(''): |
42.5'' x 33.9'' x 32.3'' |
| Accept Thickness: |
Max. 2.36'' Thick Items |
| Range of Application: |
Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Pure Cotton Time: |
15s-25s |
| Polyester Time: |
40s |
| Chemical Fiber Time: |
10s-40s |
| Pearl Board Time: |
60s-100s |
| Metal Pendant Time: |
60s |
| Mousepad Time: |
50s |
| Vitrolite Time: |
180s |
| Key Ring Pendant Time: |
100s |
| Ceramics Time: |
180s |
| Heat Plate Size: |
16'' x 24'' (40 x 60cm) |
| Material |
Temperature |
| Pure cotton |
356℉-428℉ (180℃-220℃) |
| Polyester |
356℉ (180℃) |
| Chemical fiber |
302℉-356℉ (150℃-180℃) |
| Pearl board |
356℉ (180℃) |
| Metal pendant |
356℉ (180℃) |
| Mousepad |
374℉ (190℃) |
| Vitrolite |
392℉ (200℃) |
| Ceramics |
356℉-428℉ (180℃-220℃) |
16' x 24' Up-sliding Heat Press Machine Pneumatic Heat Press Machine
- Heat press machine is full digital integrated display control;
- High accuracy of signal indication when press process is completed;
- Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;
- Heat press machine pressure can be adjusted up to 0.8Mpa, It adopts connected track which is stable and convenient for sliding, with high efficiency;
- Special high temperature cloth for hot stamping machine covered
- Lower plate covered with silicon mat and sponge to heat even heating pressure
- Heat press machine is automation print once backside inductive screw touched
- Left and right side bearings parallelly move the heat press machine
- General pressure for 0.4Mpa-0.6Mpa heat printing

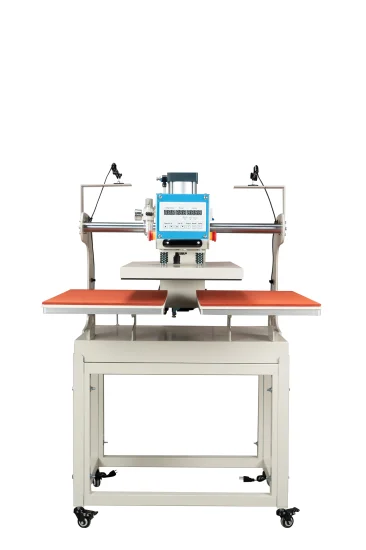

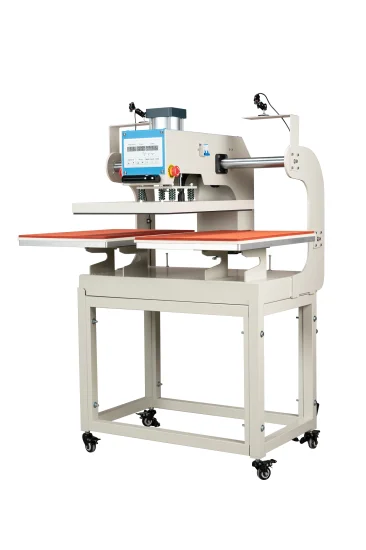

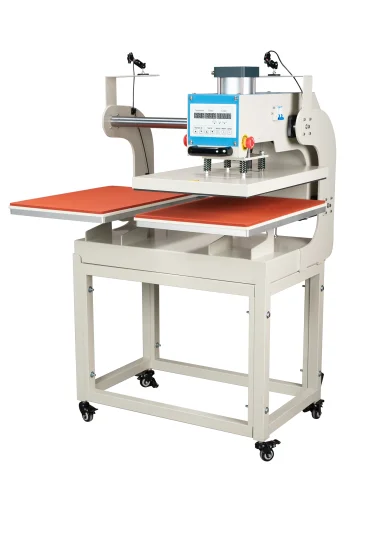

Double Station Heat Press Machine
- Pneumatic heat press transfer machine makes machine more convenient for printing;
- T-shirt printing machine is more accurate for small items printing;
- Heat press machine powered by an air compressor ( not included);
- Heat press machine lower aluminium plate with seperate stand makes it more convenient to set in finished clothes
- Heat press machine with base frame for much stable printing and easy movement with the brake caster
-

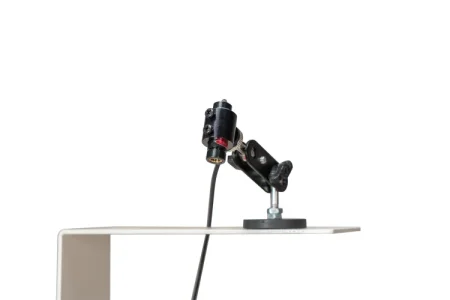

Laser positioning
This Dual Platen heat press stands out with its infrared positioning, a sophisticated feature rarely found in compact models.
This system ensures precise placement of transfers.
-
Big LCD Display Controlled, with Temperature, Time and Count Set
Can save the labor and time cost with automatic counting.
-
Emergency Stop Button for Urgent Case Stop If Needed

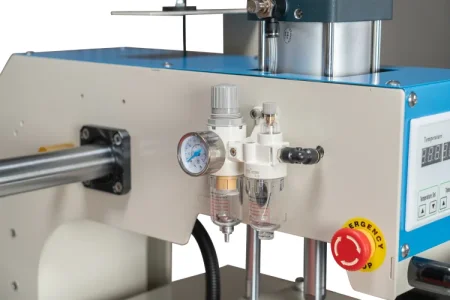

Pressure adjusting knob for easy adjustment of different pressure
Right bottle for lubricate the air cylinder.
-
Hose for the Air Compressor Included
Hose for the Air Compressor Included!
FAQs
Q:Is this 16x24 pneumatic dual platen auto heat press suitable for complex printing tasks?
A:Advanced Capabilities: The Dual Platen heat press 16x24 is designed to handle complex printing tasks with ease. Its large surface area is perfect for oversized garments or applying transfers over seams and zippers.
Q: Can this heat press improve production efficiency?
A: Yes. Our up sliding dual platen heat press machine allows you to prepare one product at the same time as pressing another, making stamping easier and more precise, which means it reduces production time and increases throughput.
Q: How user-friendly is the interface, especially for precise ?
A: Intuitive Digital Interface: Dual Platen heat press features a digital control panel for precise adjustments of temperature and pressure, which can be easily set according to the specific requirements of your projects.
