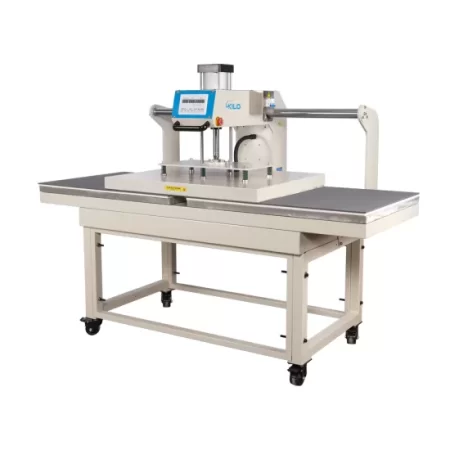

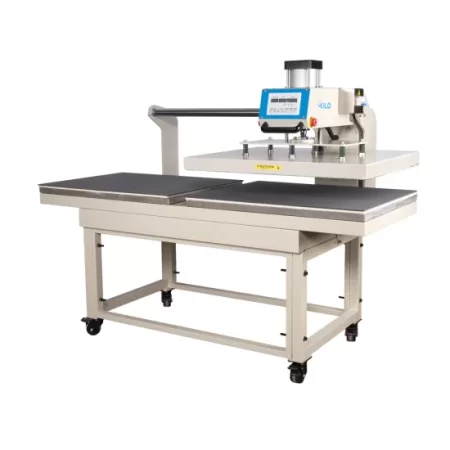

24″x40″ Large Format Double Platen Pneumatic Heat Press

Model: 24x40 large formart pneumatic up sliding dual platen heat press machine
In Stock: 4

24″x40″ Large Format Double Platen Pneumatic Heat Press

$3,256.88

(0 Reviews) Add Your Review

24x40 Large Format Pneumatic Up Sliding Dual Platen Heat Press Machine for Clothing & Apparel with Integrated Display Control . The 24x40 Large Format Pneumatic Up Sliding Dual Platen Heat Press Machine is a powerful and versatile tool for professional heat printing applications. It combines a spacious heating platen with automated functionality and precise temperature control to ensure high-quality results on a variety of materials.

Note: This 20 x40 in machine doesn’t come with plug because the output current is too big, So you need to connect three lines to main fuse box directly.

Product Features

Multiple time settings heat press machine
Full digital integrated display control, temperature, time, counting
Aluminum heat plate with die casting heating pipe
Sliding heat plate head design
Easily adjust the certain pressure
High accuracy of signal indication when press process is completed
2.36'' pressure adjustable range can process a wider range of products

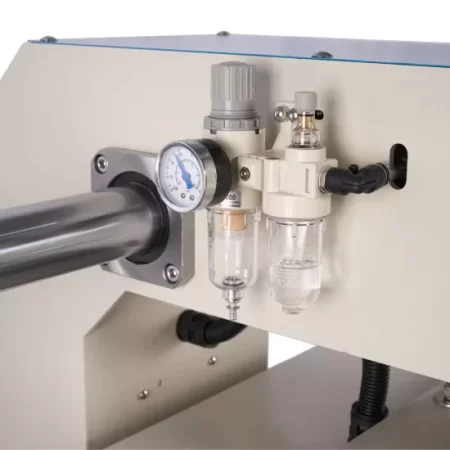

Powered by an air compressor ( not included)

Description

Upper Slide Pneumatic Double Position Hot Stamping Machine

Heat press machine is full digital integrated display control;
High accuracy of signal indication when press process is completed;
Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;
Heat press machine pressure can be adjusted up to 8kg/cm², It adopts connected track which is stable and convenient for sliding, with high efficiency;
Special high temperature cloth for hot stamping machine covered
Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure
Heat press machine is automation print once backside inductive screw touched
Left and right side bearings parallelly move the heat press machine

Technical Details

Voltage(V):	220V/ single phase
Power(KW):	7
Temperature(?):	0-299
Delaying Time(S):	1-999
G.W.(LB):	396.9
Packing size(in'):	76.8'' x 37.4'' x 37.45''
Accept Thickness:	Max. 2.36'' Thick Items
Range of Application:	Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Heat Plate Size:	28' x 35'' (70 x 90cm)

Time Requirements of Different Materials

Pure cotton	15s-25s
Polyester	40s
Chemical fiber	10s-40s
Pearl board	60s-100s
Metal pendant	60s
Mousepad	50s
Vitrolite	180s
Key ring pendant	100s
Ceramics	180s
Material	Temperature
Pure cotton	356℉-428℉ (180℃-220℃)
Polyester	356℉ (180℃)
Chemical fiber	302℉-356℉ (150℃-180℃)
Pearl board	356℉ (180℃)
Metal pendant	356℉ (180℃)
Mousepad	374℉ (190℃)
Vitrolite	392℉ (200℃)
Ceramics	356℉-428℉ (180℃-220℃)

General Pressure for 0.4Mpa-0.6Mpa Heat Printing

The heat press machine can adjust to different pressure as needed .

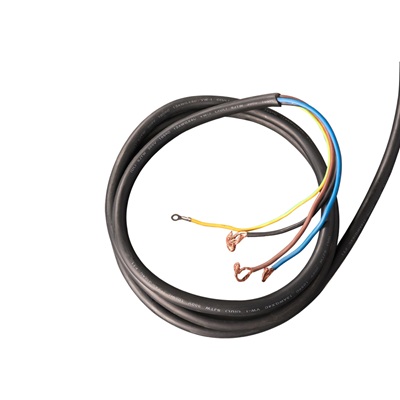

Different Charge Plug Can Be Available Depends on Customers Requirement
Different Charge Plug Can Be Available Depends on Customers Requirement.

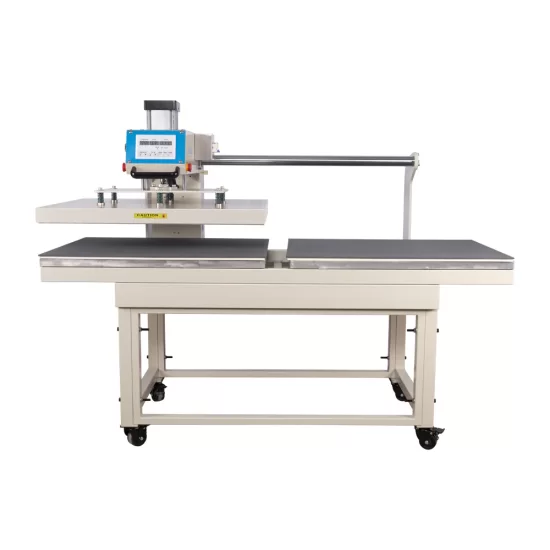

Heat Press Machine with Base Frame for Much Stable Printing and Easy Movement with the Brake Caster
Heat Press Machine with Base Frame for Much Stable Printing and Easy Movement with the Brake Caster

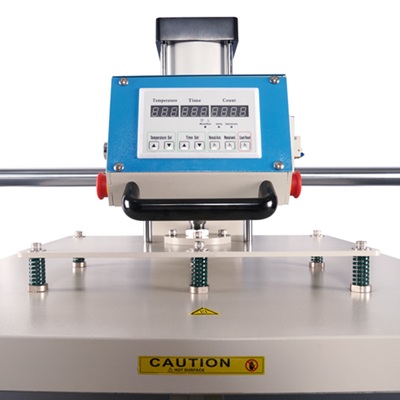

Bright, Large LED Wide Viewing Angle Heat Press Machine

Bright, Large LED Wide Viewing Angle Heat Press Machine.

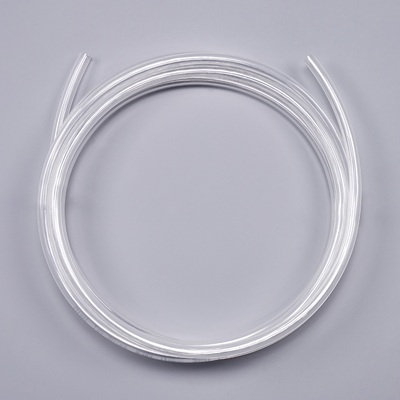

Hose for the Air Compressor Included
Hose for the Air Compressor Included.
